克罗地亚 Maslenica steel arch Bridge

信息来源: 暂无 发布日期: 2015-07-17 浏览次数:

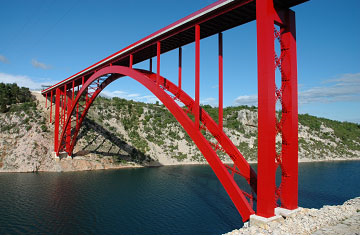

 Picture of Maslenica ridge

Completed in:

2005

Location:

Maslenica, Croatia

Structural Type:

Deck arch Bridge

Function / usage

Road bridge



   Construction materials used

Arch rib

Two steel box typed arches interconnected with longitudinal bracing

Deck system

Composite – steel grillage and reinforced concrete deck slab



Dimensions

Arch span

155m

Rise

41.45 m

Width

10.1m
